PicoIRIS
Lab-in-a-box: oscilloscope, function generator and power supply on one board

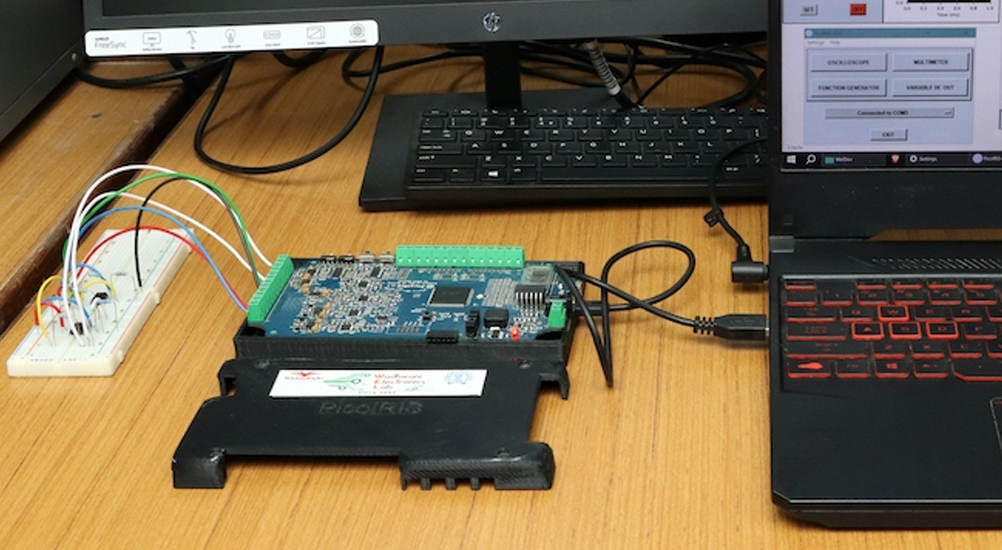

PicoIRIS combines a function generator, an oscilloscope and a power supply in a fully-integrated, affordable and portable PCB-based instrument, which lets students work on electronics projects without having to be physically present in a lab.
It connects to a laptop over USB and Bluetooth. The board is under development at WEL.
Product developer: Ankur Agarwal
Specifications
What it does
Oscilloscope
- Input frequency range1 Hz – 200 kHz
- Input voltage range±10 V max.
- Input channels2 single-ended
- Input impedance1 MΩ min.
Function generator
- Output frequency range1 Hz – 200 kHz
- Output voltage range±10 V max.
- Output functionsSine, triangle, square
- Output channels2
Power supply
- Power source5 V USB phone charger
- Power connectorMicro USB / USB-C / DC jack
- Variable DC output−10 V to +10 V, programmable
- Current output100 mA max.
Other features
- ConnectivityUSB and Bluetooth to a PC
- Digital I/OYes
- FFT analysisUnder development
Need this board for a project?
Development boards and the modules that go with them can be borrowed from WEL for a set period. Course kits are issued through the teaching lab staff.
