Signal generator
Anritsu MG3601A
Signal generator, 1040 MHz
Instruments
Routine bench instruments for teaching labs, and advanced instruments for sensitive and high-frequency measurement.
The Wadhwani Electronics Lab is equipped with routine low-end instruments and also advanced instruments for special purposes. Low-end instruments include oscilloscopes, function generators, multimeters and power supplies for use in second-year electronics courses. Advanced instruments are available for advanced courses, sensitive measurements and high-frequency work. Each set-up has a networked PC that displays lab sheets and datasheets and gives access to related information online.
Signal generators
Generators available in the lab
Signal generator

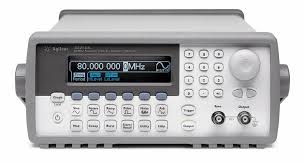

Agilent 33250A
Function / arbitrary waveform generator, 80 MHz
Signal generator

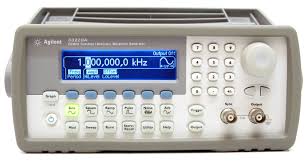

Agilent 33220A
Function / arbitrary waveform generator, 20 MHz
Signal generator

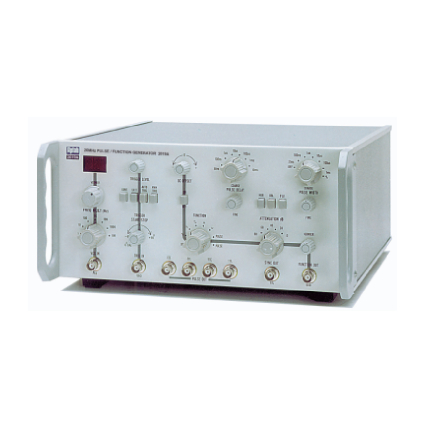

Aplab 2019A
20 MHz function / pulse generator
Signal generator
Aplab 2011A
Function generator / counter
Other categories
The rest of the instrument pool
Detailed model-by-model listings for these categories are being migrated onto this site. For current availability, check the equipment loan portal or ask the lab staff.
Oscilloscopes & Displays
Digital storage oscilloscopes at every teaching bench, plus higher-bandwidth scopes and displays for advanced courses and sensitive measurements.
Analyzers
Logic analyzers and spectrum / network analysis equipment for digital debugging and high-frequency measurement.
Multimeters & Meters
Bench and handheld digital multimeters, LCR meters and dedicated meters used across the instructional laboratories.
Power & High-Voltage Equipment
Programmable bench power supplies and high-voltage sources for device characterisation and project work.
Specialized Testers and Other
In-circuit emulators, EPROM programmers, FPGA programmers and dedicated testers built up over two decades of lab operation.
Borrow an instrument
Instruments can be taken from WEL for a specific time period, subject to availability. Requests go through the equipment loan portal.
