Xen-10

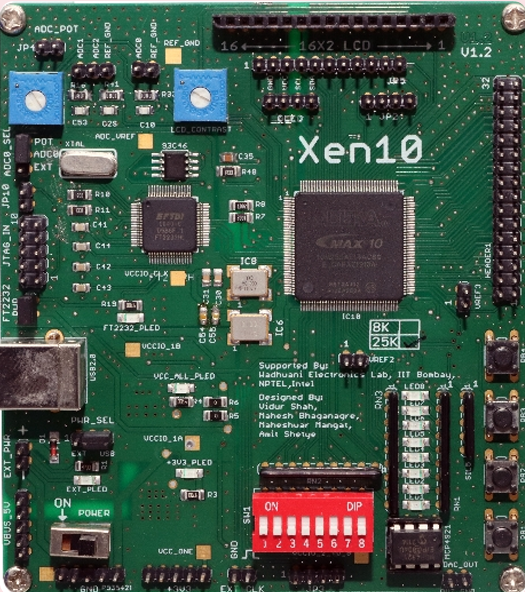

ALTERA MAX 10 FPGA development board for advanced digital design experiments and R&D projects
Xen-10 is used across the digital design courses at WEL and in R&D projects, and like the rest of the course hardware it is designed and manufactured in-house.
Product developers: Vidur Shah, Mahesh B., Maheshwar M., Amit S.
Used in: EE 214: Digital Circuits Lab
Features
- FPGA device: Altera MAX 10 (10M25SAE144C8G / 10M08SAE144C8G)
- USB connector for programming, JTAG interface for debugging
- 8 on-board switches and 8 on-board LEDs
- 4 push-buttons
- Header to connect external devices and boards
- 16-pin connector for an LCD panel, OLED or any I2C interface device
- On-board 12-bit single-channel MCP4921 DAC
- On-board clocks of 1 Hz, 10 MHz and 50 MHz, with provision for an external clock source through the EXT CLK header
